More than 15 different series to solve all possible ventilation problems, direct-driven by flexible coupling and by belts and pulleys. Savio manufactures aluminium or steel impellers with riveted or welded blades depending on the application and the conveyed fluid. Designed for easy inspection and maintenance, on request fans can be manufactured in compliance with the ATEX directive.
LOW PRESSURE – Able to reach pressure values up to approx 3000 Pa, ideal for ventilation and conditioning of industrial areas, extraction of stale air, vapours from solvent tanks, drying and removal of hazardous fumes and gases.
MEDIUM PRESSURE – Able to reach pressure values up to approx. 6000/7000 Pa, ideal to convey fumes, dust, granules, sawdust and even wood chips in air mixture.
HIGH PRESSURE – Able to reach pressure values up to approx. 25.000 Pa, ideal to convey fumes and dust mixed with air.
PERFORMANCE
Pressure range (mBar): 6 ÷ 90
Flow rate range (m3/h): 650 ÷ 250.000
Max. inlet fluid temperature (°C): 350°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Transmission coupling – Execution 12
Finish: RAL 7038 standard painting

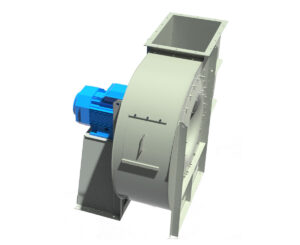

PERFORMANCE
Pressure range (mBar): 5 ÷ 70
Flow rate range (m3/h): 380 ÷ 105.000
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Direct drive- Execution 4-5
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 4 ÷ 50
Flow rate range (m3/h): 350 ÷ 220.000
Max. inlet fluid temperature (°C): 350°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Transmission coupling – Execution 12
Finish: RAL 7038 standard painting

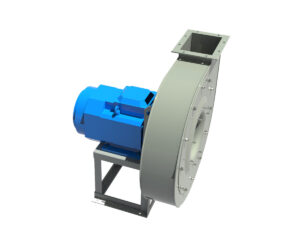

PERFORMANCE
Pressure range (mBar): 4 ÷ 70
Flow rate range (m3/h): 400 ÷ 70.000
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Direct drive- Execution 4-5
Finish: RAL 7038 standard painting

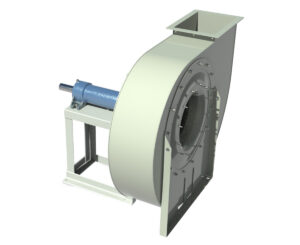

PERFORMANCE
Pressure range (mBar): 15 ÷ 85
Flow rate range (m3/h): 2.800 ÷ 145.000
Max. inlet fluid temperature (°C): 350°C
CONSTRUCTION
Impeller type: With special profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Transmission coupling – Execution 1
Finish: RAL 7038 standard painting

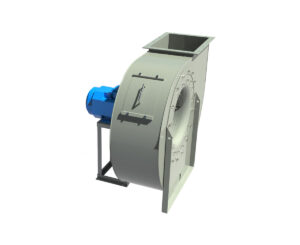

PERFORMANCE
Pressure range (mBar): 12 ÷ 85
Flow rate range (m3/h): 1.400 ÷ 105.000
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Direct drive- Execution 4-5
Finish: RAL 7038 standard painting

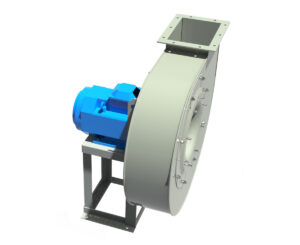

PERFORMANCE
Pressure range (mBar): 15 ÷ 60
Flow rate range (m3/h): 400 ÷ 7.000
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: With constant profile backward curved blades in welded steel
Fan casing: High thickness steel with folded joint
Execution: Direct drive- Execution 4-5
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 3 ÷ 60
Flow rate range (m3/h): 2.000 ÷ 50.000
Max. inlet fluid temperature (°C): 170°C
CONSTRUCTION
Impeller type: With backward curved blades, aluminium airfoil for SCLKT series, constant profile welded steel for the SFLKT series
Fan casing: High thickness galvanized steel with folded joint
Execution: Transmission coupling – Execution 1
Finish: Unpainted as standard

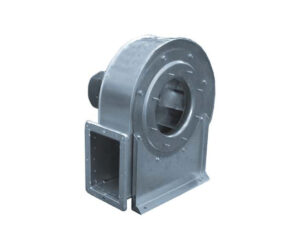

PERFORMANCE
Pressure range (mBar): 2 ÷ 60
Flow rate range (m3/h): 180 ÷ 37.800
Max. inlet fluid temperature (°C): 170°C
CONSTRUCTION
Impeller type: With backward curved blades, aluminium airfoil for SCL – SCLK series, constant profile welded steel for the SFL – SFLK series
Fan casing: High thickness galvanized steel with folded joint
Execution: Direct drive- Execution 4-5
Finish: Unpainted as standard
