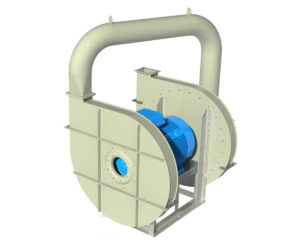

More than 15 different series to solve all possible ventilation problems, direct-driven by flexible coupling and by belts and pulleys. Savio manufactures aluminium or steel impellers with riveted or welded blades depending on the application and the conveyed fluid. Designed for easy inspection and maintenance, on request fans can be manufactured in compliance with the ATEX directive.
LOW PRESSURE – Able to reach pressure values up to approx. 3000 Pa, ideal for ventilation and conditioning of industrial areas, extraction of stale air, vapours from solvent tanks, drying and removal of hazardous fumes and gases.
MEDIA PRESSIONE – Able to reach pressure values up to approx. 6000/7000 Pa, ideal to convey fumes, dust, granules, sawdust and even wood chips in air mixture.
HIGH PRESSURE – Able to reach pressure values up to approx. pressioni fino a circa 25.000 Pa, ideal to convey fumes and dust mixed with air.
PERFORMANCE
Pressure range (mBar): 135 ÷ 490
Flow rate range (m3/h): 1.080 ÷ 12.000
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: In welded steel, with backward curved blades
Fan casing: High thickness steel with folded joint
Execution: Direct drive – Double-stage execution 4
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 140 ÷ 460
Flow rate range (m3/h): 600 ÷ 4.260
Max. inlet fluid temperature (°C): 150°C
CONSTRUCTION
Impeller type: In welded steel, with backward curved blades
Fan casing: High thickness steel with folded joint
Execution: Direct drive – Double-stage execution 4
Finish: RAL 7038 standard painting
