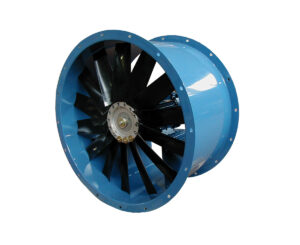

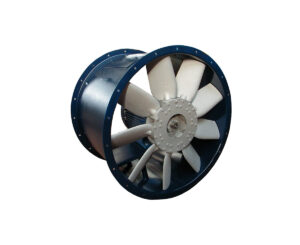

Savio offers a wide range of axial fans, complete and diversified to meet specific customer requirements. The impeller can be made with adjustable or fixed blades in different materials and can be direct-driven or driven by belts and pulleys. Savio axial fans, in the version complying with ATEX directive, have been designed to be used also in polluted environments and in contact with flammable or explosive fluids.
PERFORMANCE
Pressure range (mBar): 0 ÷ 16
Flow rate range (m3/h) 240 ÷ 150.000
Max. inlet fluid temperature (°C): 60°C
CONSTRUCTION
Impeller type: With aluminium alloy or resin blades
Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 0 ÷ 16
Flow rate range (m3/h): 240 ÷ 150.000
Max. inlet fluid temperature (°C): 60°C
CONSTRUCTION
Impeller type: With aluminium alloy or resin blades
Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 0 ÷ 11
Flow rate range (m3/h): 240 ÷ 33.600
Max. inlet fluid temperature (°C): 60°C
CONSTRUCTION
Impeller type: With aluminium alloy or resin blades
Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting
PERFORMANCE
Pressure range (mBar): 0 ÷ 16
Flow rate range (m3/h): 2.100 ÷ 150.000
Max. inlet fluid temperature (°C): 60°C
CONSTRUCTION
Impeller type: With aluminium alloy or resin blades
Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting
